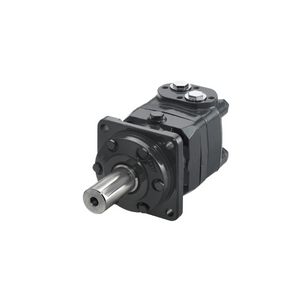

Danfoss OMT 160 Hydraulic Motor

Product Description:
40mm Cylindrical Shaft
Geometric displacement 161.1 cm³
Max. speed continuous. 625 min-1
Max. speed intermittent.¹ 780 rpm
Max. torque continuous. 470 Nm
Max. torque intermittent.¹ 560 Nm
Max. output continuous. 26.5 kW
Max. output intermittent.¹ 32.0 kW
Max. pressure continuous. 200 bar
Max. pressure intermittent.¹ 240 bar
Max. pressure peak² 280 bar
