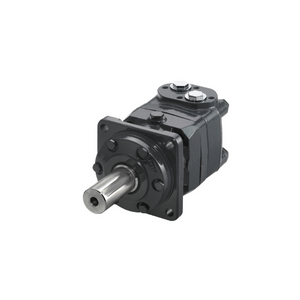

Danfoss OMT 500 Hydraulic Motor

Product Description:
40mm Cylindrical Shaft
Geometric displacement 523.6 cm³
Max. speed continuous. 240 min-1
Max. speed intermittent.¹ 285 rpm
Max. torque continuous. 1220 Nm
Max. torque intermittent.¹ 1370 Nm
Max. output continuous. 26.5 kW
Max. output intermittent.¹ 30.0 kW
Max. pressure continuous. 160 bar
Max. pressure intermittent.¹ 180 bar
Max. pressure peak² 210 bar
