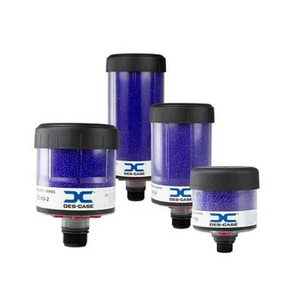

DES-CASE (DC-VG-3) VentGuard™ Hybrid Button Breathers

Product Description:
DES-CASE (DC-VG-3) VentGuard™ Hybrid Button Breathers
The breather is outfitted with check valves to ensure no excess pressure / vacuum builds. A clear rugged polycarbonate casing allows for viewing desiccant as it changes colour, indicating that the breather should be replaced.

Key Features:
Unit Height (in/mm): 8.125” / 206.4 mm
Unit Diameter (width in/mm): 4” / 101.6 mm
Amount of Silica Gel (lbs/kg): 1.22 lbs. / 0.56 kg
Adsorption Capacity (fl oz/ml): 7.45 fl. oz / 220.3 mL
Max. Flow Rate (cfm): 2.28 @ 1 psid
Max. Flow Rate (lpm): 64.5
Filtration: absolute (>200)
Operating Temp. Range (°F): -20ºF to 200ºF
Operating Temp. Range (°C): -29ºC to 93ºC
Hydrophilic Agent: Silica gel
Filter Media: Polyester
Connection Size: 1” Mult-fit (NPT, BSPT, NPSM)
Body Material: Polycarbonate, Nylon, Polypropylene, Polyester, Polyurethane, Buna-N, PVC

Specifications:
Internal check valve system creates a nearly sealed system
Integrated nylon standpipe and clear polycarbonate casing allow for greater chemical compatibility and vibration resistance
Filter element captures particles at 3 micron absolute (>200)

Benefits:
Eliminates rust forming condensation
Prevents sludge deposits and water contaminated oil
Provides longer oil and filter life
Reduces wear and tear on equipment, prolongs life

Ideal for:
Gearboxes and other low-flow applications

*Please note, the images displayed may not be the true representation of the product. For the exact images, please contact Neilson Hydraulics Technical Team on 01709 821 002.
