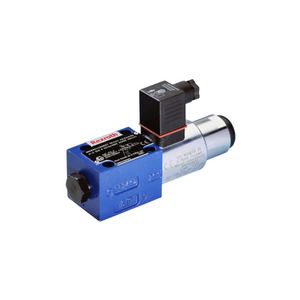

Bosch Rexroth CETOP 3 M-SED 3/2 Poppet Valve

Product Description:
Direct operated, directional seat valve with solenoid actuation - SED
Component series 1X
Size 6
Maximum operating pressure 350 bar
Maximum flow 25 l/min
Porting pattern according to ISO 4401
3 main ports
Solenoid, wet pin with detachable coil
DC voltage 24 V
With concealed manual override
Without mating connector, individual connection with connector according to DIN EN 175301-803

Model Number: M-SED6UK1X/350CG24N9K4
