Danfoss H1 Pumps - Single & TandemPRODUCT CODE: DANH1STPUMPS BRAND: Danfoss

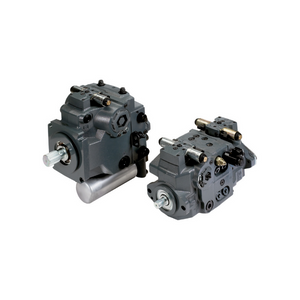

Danfoss H1 Axial Piston Pumps – Single and Tandem
The Danfoss H1 Axial Piston Variable Displacement Pumps are of cradle swashplate design and are intended for closed circuit applications. Flow direction is reversed by tilting the swashplate to the opposite side of the neutral (zero displacement) position. The flow rate is proportional to the pump input speed and displacement. The latter is infinitely adjustable between zero and maximum displacement.
The H1 family of closed circuit variable displacement axial piston pumps is designed for use with all existing Danfoss hydraulic motors for the control and transfer of hydraulic power.H1 pumps can be used together in combination with other Danfoss pumps and motors in the overall hydraulic system.
Danfoss hydrostatic products are designed with 14 different displacements (cm³ [in³]):
045 45.0 [2.75]
053 53.8 [3.28]
060 60.4 [3.69]
068 68.0 [4.15]
069 69.0 [4.22]
078 78.0 [4.76]
089 89.2 [5.44]
100 101.7 [6.21]
115 115.8 [7.07]
130 130.8 [7.98]
147 147.0 [8.97]
165 165.0 [10.07]
210 211.5 [12.91]
250 251.7 [15.36]
Danfoss hydrostatic products are designed with many different pressure, load-life and control capabilities:
Electric displacement control (EDC)
Forward-Neutral-Reverse control (FNR)
Non Feedback Proportional Electric control (NFPE)
Automotive Control (AC)
Fan Drive Control (FDC)
Manual displacement control (MDC)
Control-Cut-Off valve (CCO)
High power density where all units utilize an integral electro-hydraulic servo piston assembly that controls the rate (speed) and direction of the hydraulic flow.
Compatible with the Danfoss family of PLUS+1® microcontrollers for easy Plug-and-Perform installation.
More compact and lightweight
Improved reliability and performance
To enquire about Danfoss H1 Pumps and for further technical help / assistance, please call the team on 01709 821002. You can also view the Danfoss H1 Axial Piston Pumps Technical Data Sheet at: https://assets.danfoss.com/documents/159960/BC152886483968en-000901.pdf
*Please note, the images displayed may not be the true representation of the product. For the exact images, please contact Neilson Hydraulics Technical Team on 01709 821 002.
