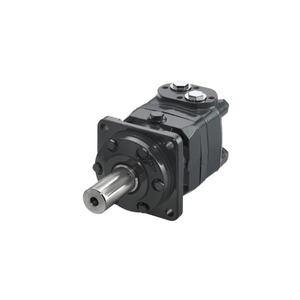

Danfoss OMT 315 Hydraulic Motor

Product Description:
40mm Cylindrical Shaft
Geometric displacement 326.3 cm³
Max. speed continuous. 380 min-1
Max. speed intermittent.¹ 460 rpm
Max. torque continuous. 950 Nm
Max. torque intermittent.¹ 1140 Nm
Max. output continuous. 33.5 kW
Max. output intermittent.¹ 40.0 kW
Max. pressure continuous. 200 bar
Max. pressure intermittent.¹ 240 bar
Max. pressure peak² 280 bar
