DES-CASE (DC-1) 2.75" x 5.25" Hygroscopic Disposable BreathersPRODUCT CODE: DC-1 BRAND: Des-Case

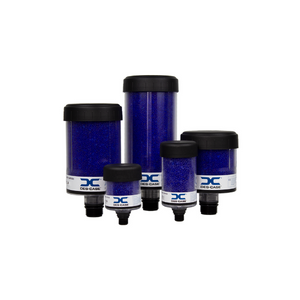

DES-CASE (DC-1) 2.75" x 5.25" Hygroscopic Disposable Breather
As wet contaminated air is drawn through the unit, multiple 3-micron polyester filter elements remove solid particulate and the colour-indicating silica gel extracts moisture.
When air is expelled from the container, the top foam pad prevents oil mist from contacting silica gel or entering atmosphere.
Each breather is outfitted with a clear, rugged polycarbonate casing that allows easy view if colour-indicating desiccant in order to monitor when the breather should be replaced.
Unit Height (in/mm): 5.31”/134.9 mm
Unit Diameter (width in/mm): 2.52”/64.01 mm
Amount of Silica Gel (lbs/kg): 0.28 lbs/ 125.3 g
Adsorption Capacity (fl oz/ml): 1.68 fl oz/49.7 ml
Max. Flow Rate (cfm): 4.16 @ 1 psid
Max. Flow Rate (lpm): 117.8
Filtration: absolute (>200)
Operating Temp. Range (°F): -20ºF to 200ºF
Operating Temp. Range (°C): -29ºC to 93ºC
Body Material: Polycarbonate, Nylon, Polypropylene, Polyester, Polyurethane, Silica, Buna-N, PVC
Hydrophilic Agent: Silica gel
Filter Media: Polyester
Connection Size: 3/8” Multi-Fit (NPT, BSPP, BSPT)
Integrated nylon standpipe and clear polycarbonate casing allow for greater chemical compatibility and vibration resistance
Multi-tiered filtration process
Filter elements captures particles at 3 micron absolute (>200)
Eliminates rust-forming condensation
Prevents sludge deposits and water contaminated oil
Provides longer oil and filter life
Reduces wear and tear on equipment, prolongs life
