DES-CASE (DC-VG-BB) VentGuard™ Hybrid Button BreathersPRODUCT CODE: DC-VG-BB BRAND: Des-Case

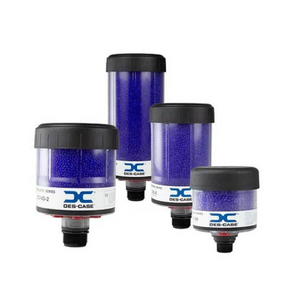

DES-CASE (DC-VG-BB) VentGuard™ Hybrid Button Breathers
The breather is outfitted with check valves to ensure no excess pressure / vacuum builds. A clear rugged polycarbonate casing allows for viewing desiccant as it changes colour, indicating that the breather should be replaced.
Unit Height (in/mm): 3.9” / 99.06 mm
Unit Diameter (width in/mm): 2.52” / 64.01 mm
Amount of Silica Gel (lbs/kg): 0.13 lbs. / 58.6 g
Adsorption Capacity (fl oz/ml): 0.79 fl. oz. / 23.3 mL
Max. Flow Rate (cfm): 1.45 @ 1 psid
Max. Flow Rate (lpm): 41.06
Filtration: absolute (>200)
Operating Temp. Range (°F): -20ºF to 200ºF
Operating Temp. Range (°C): -29ºC to 93ºC
Hydrophilic Agent: Silica gel
Filter Media: Polyester
Body Material: 3/8" Multi-fit (NPT, BSPP, BSPT)
Connection Size: Polycarbonate, Nylon, Polypropylene, Polyester, Polyurethane, Buna-N, PVC
Internal check valve system creates a nearly sealed system
Integrated nylon standpipe and clear polycarbonate casing allow for greater chemical compatibility and vibration resistance.
Filter element captures particles at 3 micron absolute (>200)
Eliminates rust forming condensation
Prevents sludge deposits and water contaminated oil
Provides longer oil and filter life
Reduces wear and tear on equipment, prolongs life.
Gearboxes and other low-flow applications
