DES-CASE DC-XD-6 Extreme Duty Breather

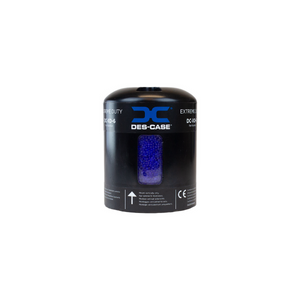

DES-CASE (DC-XD-6) Extreme Duty Breather


Product Description:
DES-CASE (DC-XD-6) Extreme Duty Breather
Every element of DES-CASE’S Extreme Duty Disposable Breathers has been designed to take contamination control to a whole new level, standing up to a wide variety of applications in challenging environments. DES-CASE Extreme Duty Breathers attack the cause of contamination, keeping dirt and water where it belongs – out of your equipment.
As wet, contaminated air is drawn through the unit, multiple 0.3 micron filter elements remove solid particulate and the colour-indicating silica gel extracts moisture. When air is expelled from the container, the top foam pad prevents oil mist from contacting silica gel or entering the atmosphere. The hydrophilic agent is partially reactivated by the dry air passing back through.

Key Features:
Unit Height (in/mm): 6.51” / 165.4 mm
Unit Diameter (width in/mm): 5.1” / 129.5 mm
Amount of Silica Gel (lbs/kg): 1.75 lbs. / 0.79 kg
Adsorption Capacity (fl oz/ml): 10.65 fl.oz. / 315 mL
Max. Flow Rate (cfm): 16 @ 1 PSID
Max. Flow Rate (lpm): 456
Filtration: absolute (>200)
Operating Temp. Range (°F): -40ºF to 300ºF
Operating Temp. Range (°C): -40ºC to 148.89ºC
Hydrophilic Agent: Silica gel
Filter Media: ePTFE
Connection Size: 1½” x 16 UN female thread
Body Material: Polycarbonate / Polybutylteraphtalate (PC/PBT), Polytetrafluoroethylene, Aluminium, Polyurethane, Polycarbonate

Automotive grade housing and solid standpipe design offer increased vibration resistance and temperature range
Three layers of protection to 0.3 micron absolute
Internal check valve system
The breather is outfitted with a rugged housing and an integrated standpipe, allowing for decreased oil misting while offering improved vibration resistance. Visual indicator windows show the desiccant as it changes colour, indicating that the breather should be replaced. Check valves keep out ambient humidity while the system is at rest.

Eliminates rust forming condensation
Prevents sludge deposits and water contaminated oil
Provides longer oil and filter life
Reduces wear and tear on equipment, prolongs life

Ideal for:
Harsh environments
Mobile equipment
Nautical applications

*Please note, the images displayed may not be the true representation of the product. For the exact images, please contact Neilson Hydraulics Technical Team on 01709 821 002.
