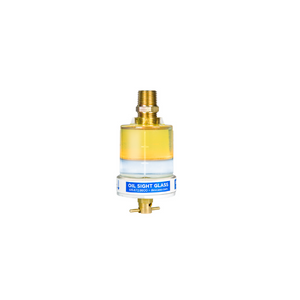

DES-CASE High Temperature Oil Sight GlassesPRODUCT CODE: DCHTOILSIGHTGL BRAND: Des-Case
Inspect oil and drain water out of your reservoir with the original solution to oil inspection problems. With the Des-Case Oil Sight Glass (OSG) users have an immediate visual inspection of the oil and the ability to drain any accumulated water. The DES-CASE OSG is installed directly to a drain port located at the bottom of a reservoir or with an elbow for drain ports located on the side of the equipment. The spring loaded drain valve is utilised to purge any accumulated water. Any sediment or particles in the lubricating fluid will migrate to the DES-CASE OSG where, upon inspection, the user can determine the appropriate action.
Brass fittings standard
Recommended Temperature Range:
-40°C to 93°C
Maximum Operating Pressure:
65 psi / 4.48 bar
All mineral and synthetic oils
1/4", 3/8", and 1/2" NPT ports
1oz and 3oz sizes
Stainless steel fittings
Magnetic drain valve for collecting ferrous material
Pumps, Gearboxes, Storage Tanks, Fluid-Lubricated Machinery, etc.
The following options are available:
Part Number: DC-OSG1x250HT – Description: Oil Sight Glass 1 oz x 1/4" NPT High Temperature
Part Number: DC-OSG1x375HT – Description: Oil Sight Glass 1 oz x 3/8" NPT High Temperature
Part Number: DC-OSG1x500HT – Description: Oil Sight Glass 1 oz x 1/2" NPT High Temperature
Part Number: DC-OSG3x250HT – Description: Oil Sight Glass 3 oz x 1/4" NPT High Temperature
Part Number: DC-OSG3x375HT – Description: Oil Sight Glass 3 oz x 3/8" NPT High Temperature
Part Number: DC-OSG3x500HT – Description: Oil Sight Glass 3 oz x 1/2" NPT High Temperature
Please contact us on 01709 821002 or email: email@example.com for price and availability of the DES-CASE High Temperature Oil Sight Glasses (formerly ESCO).
*Please note, the images displayed may not be the true representation of the product. For the exact images, please contact Neilson Hydraulics Technical Team on 01709 821 002.
