DES-CASE Oil Sight Glass Level Monitors

DES-CASE Oil Sight Glass Level Monitors

PRODUCT CODE: DCOILSIGHTGLLM BRAND: Des-Case

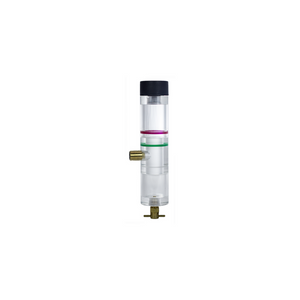

Inspect, analyse and remove contaminants, as well as managing your oil levels with DES-CASE Oil Sight Glass Monitors. The DES-CASE Oil Sight Glass Level Monitor (OSGL) allows you to view oil colour, clarity and accumulation of water or other contaminants while monitoring the level of the oil in the reservoir.

It is available in multiple lengths ranging from 3" to 24" to correspond to the distance from the oil reservoir access port and the maximum height the oil will reach. A dual port version is available with a second 3/8" NPT port opposite the installation nipple to allow the installation of a sampling tube to draw representative oil samples without pulling outside contaminants.

Specifications

Material:
Stain-resistant acrylic
Brass fittings standard
DES-CASE ND-2 breather 0.3 micron absolute (ß0.3 approximately greater than 1000)

Recommended Temperature Range:
-40°C to 93°C

Maximum Operating Pressure:
65 psi / 4.48 bar

Chemical Compatibility:
All mineral and synthetic oils

Available Options:
3/8" NPT single port or dual ports
Lengths ranging from 150mm to 610mm
Stainless steel fittings
Magnetic drain valve for collecting ferrous material

Application:
Pumps, Gearboxes and Storage Tanks etc.

The following options are available:
Part Number: DC-OSGL3 – Description: Oil Sight Glass & Level Monitor, 3"
Part Number: DC-OSGL3DP – Description: Oil Sight Glass & Level Monitor, 3" Dual Port
Part Number: DC-OSGL6 – Description: Oil Sight Glass & Level Monitor, 6"
Part Number: DC-OSGL6DP – Description: Oil Sight Glass & Level Monitor, 6" Dual Port
Part Number: DC-OSGL9 – Description: Oil Sight Glass & Level Monitor, 9"
Part Number: DC-OSGL9DP – Description: Oil Sight Glass & Level Monitor, 9" Dual Port
Part Number: DC-OSGL12 – Description: Oil Sight Glass & Level Monitor, 12"
Part Number: DC-OSGL12DP – Description: Oil Sight Glass & Level Monitor, 12" Dual Port
Part Number: DC-OSGL15 – Description: Oil Sight Glass & Level Monitor, 15"
Part Number: DC-OSGL15DP – Description: Oil Sight Glass & Level Monitor, 15" Dual Port
Part Number: DC-OSGL18 – Description: Oil Sight Glass & Level Monitor, 18"
Part Number: DC-OSGL18DP – Description: Oil Sight Glass & Level Monitor, 18" Dual Port
Part Number: DC-OSGL24 – Description: Oil Sight Glass & Level Monitor, 24"
Part Number: DC-OSGL24DP – Description: Oil Sight Glass & Level Monitor, 24" Dual Port

Please contact us on 01709 821002 or email: sales@neilson-hydraulics.co.uk for the price and availability of the DES-CASE Oil Sight Glass Level Monitors (formerly ESCO).

*Please note, the images displayed may not be the true representation of the product. For the exact images, please contact Neilson Hydraulics Technical Team on 01709 821 002.
