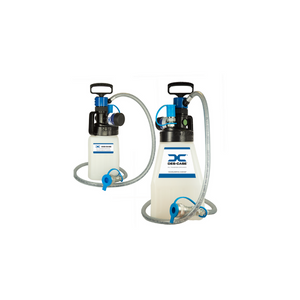

DES-CASE Oil Transfer Containers

The first best practice solution to keep oil clean and dry during oil transfer. The DES-CASE Oil Transfer Containers provide the first best practice solution to keep oil clean and dry during oil transfer. With non-desiccant and desiccant breather options available, as well as quick connects for clean filling, DES-CASE IsoLink™ isolates oil from the environment providing the ultimate in best practice contamination control.

Performance
For keeping oil clean and dry during storage and transfer to machinery within ambient temperature ranges of -40°C to 80°C.

Materials & Components:

Dispensing Lid:
Nylon
304 Stainless Steel
Steel
Buna-N
HDPE

Pump Lid, with Pump:
304 Stainless Steel
Steel
Fluoro-silicone
Silicone
Nylon
PVC
Polyurethane
Aluminium
HDPE

Container:
HDPE

Application:
Transferring small volumes of oil
Topping off reservoirs
Small volume storage

How it works
The DES-CASE Oil Transfer Containers are the perfect solution for small volume transfers of oil to machines. Industrial-grade HDPE containers will not chemically react with oil or additive packages. The trigger mechanism in the dispensing lid keeps fluid isolated until engaged, controlling moisture and contamination. Optional non-desiccant or desiccant breathers keep oil clean and dry while in the container. An optional ISO B quick connect allows new, pre-filtered oil to be added to the container without exposing it to the atmosphere. The interchangeable spouts allow more flexibility with the standard dispensing lid and eliminate the need for funnels. They are available in different lengths, tip sizes, colours, and either rigid or extended options. Additional accessories like the pump lid, pump, and color-coding label system allow for even more control of your lubricant storage and handling. Using the DES-CASE Oil Transfer Container and its best practices options ensures the oil transferred to your equipment is free of contamination.

We provide the following DES-CASE IsoLink™ kits:
DES-CASE IsoLink™ Basic Kit: DC-OCT-K-B
Includes: (1) of each container, (2) Basic Spout Lids with Vent Plugs (no Breathers), (1) 5" Spout with 1" tip, (1) 8" Spout with 1/2" tip, (1) 15" Extended Spout with 1" tip, (1) pump lid, (1) pump, (1) pump colour coding ring

DES-CASE IsoLink™ ND-2 Kit: DC-OCT-K-N
Includes: (1) of each container, (2) Basic Spout Lids with Vent Plugs & DC-ND-2 Breathers, (1) 5" Spout with 1" tip, (1) 8" Spout with 1/2" tip, (1) 15" Extended Spout with 1" tip, (1) pump lid with DC-ND-2 Breather, (1) pump, (1) pump colour coding ring

DES-CASE IsoLink™ Best Practice Kit: DC-OCT-K-P
Includes: (1) of each container, (2) Basic Spout Lids with ISO B Plugs & DCBB Breathers, (1) 5" Spout with 1" tip, (1) 8" Spout with 1/2" tip, (1) 15" Extended Spout with 1" tip, (1) pump lid with ISO B plug & DC-BB Breather, (1) pump with ISO B Coupler, (1) pump colour coding ring

DES-CASE IsoLink™ Containers (Every lid fits every container)
DC-OCT-C-4 – 4 Litre Container
DC-OCT-K-B – 7 Litre Container
DC-OCT-C-10 – 10 Litre Container

We also provide the following DES-CASE IsoLink™ individual components:
DES-CASE IsoLink™ Dispensing Lids (Spouts supplied separately)
DES-CASE IsoLink™ Dispensing Lids with ISO B Plug (Spouts supplied separately)
DES-CASE IsoLink™ 5” Rigid Spout (Complete with black contamination control cap)
DES-CASE IsoLink™ 8” Rigid Spout (Complete with black contamination control cap)
DES-CASE IsoLink™ 15” Extended Spout (Complete with black contamination control cap)
DES-CASE IsoLink™ Pump Lid with Vent Plug
DES-CASE IsoLink™ Pump Lid with DC-ND-2 Breather
DES-CASE IsoLink™ Pump Lid with DC-BB Breather
DES-CASE IsoLink™ Pump Lid with ISO B Plug & Vent Plug
DES-CASE IsoLink™ Pump Lid with ISO B Plug & DC-ND-2 Breather
DES-CASE IsoLink™ Pump Lid with ISO B Plug & DC-BB Breather
DES-CASE IsoLink™ Pumps
DES-CASE IsoLink™ Pump Colour Coding Ring
DES-CASE IsoLink™ Replacement Hoses

Please contact us on 01709 821002 or email: sales@neilson-hydraulics.co.uk for the price and availability of the DES-CASE Oil Transfer Containers (formerly ESCO).

*Please note, the images displayed may not be the true representation of the product. For the exact images, please contact Neilson Hydraulics Technical Team on 01709 821 002.
