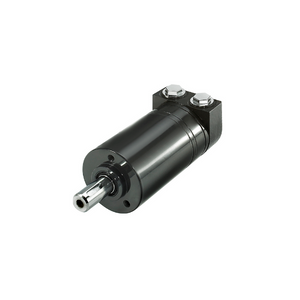

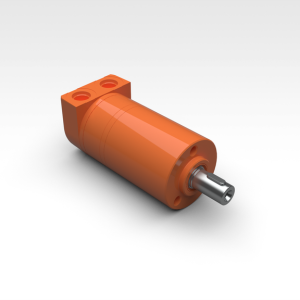

White Drive OMM 12.5 Hydraulic Mini Motor - Side Port Version

Product Description:
16mm Cylindrical Shaft
Geometric displacement 12.5 cm³
Max. speed continuous. 1550 min-1
Max. speed intermittent.¹ 1940 rpm
Max. torque continuous. 16 Nm
Max. torque intermittent.¹ 23 Nm
Max. output continuous. 2.4 kW
Max. output intermittent.¹ 3.2 kW
Max. pressure continuous. 100 bar
Max. pressure intermittent.¹ 140 bar
Max. pressure peak² 200 bar

Formerly Danfoss OMM 12.5 Hydraulic Mini Motor - Side Port Version

*Please note, the images displayed may not be the true representation of the product. For the exact images, please contact Neilson Hydraulics Technical Team on 01709 821 002.
