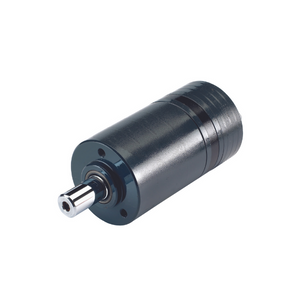

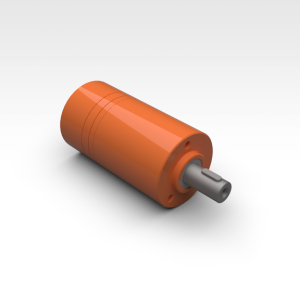

White Drive OMM 50 Hydraulic Mini Motor - End Port Version

Product Description:
16mm Cylindrical Shaft
Geometric displacement 50 cm³
Max. speed continuous. 400 min-1
Max. speed intermittent.¹ 500 rpm
Max. torque continuous. 46 Nm
Max. torque intermittent.¹ 88 Nm
Max. output continuous. 1.8 kW
Max. output intermittent.¹ 3.2 kW
Max. pressure continuous. 70 bar
Max. pressure intermittent.¹ 140 bar
Max. pressure peak² 160 bar

Formerly Danfoss OMM 50 Hydraulic Mini Motor - End Port Version

*Please note, the images displayed may not be the true representation of the product. For the exact images, please contact Neilson Hydraulics Technical Team on 01709 821 002.
