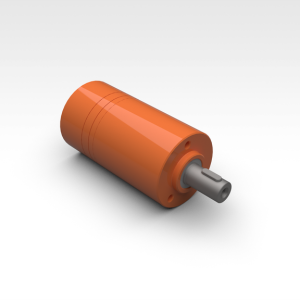

White Drive OMM 8 Hydraulic Mini Motor - End Port Version

Product Description:
16mm Cylindrical Shaft
Geometric displacement 8.2 cm³
Max. speed continuous. 1950 min-1
Max. speed intermittent.¹ 2450 rpm
Max. torque continuous. 11 Nm
Max. torque intermittent.¹ 15 Nm
Max. output continuous. 1.8 kW
Max. output intermittent.¹ 2.6 kW
Max. pressure continuous. 100 bar
Max. pressure intermittent.¹ 140 bar
Max. pressure peak² 200 bar

Formerly Danfoss OMM 8 Hydraulic Mini Motor - End Port Version
