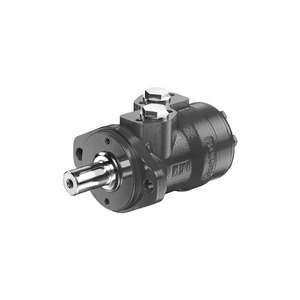

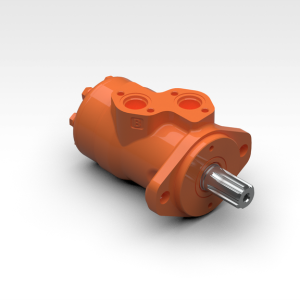

White Drive OMP X 100 Hydraulic Motor

Product Description:
25mm Cylindrical Shaft
Geometric displacement 97.3 cm³
Max. speed continuous. 615 min-1
Max. speed intermittent.¹ 770 rpm
Max. torque continuous. 190 Nm
Max. torque intermittent.¹ 230 Nm
Max. torque peak² 270 Nm
Max. output continuous. 11.0 kW
Max. output intermittent.¹ 13.0 kW
Max. pressure continuous. 140 bar
Max. pressure intermittent.¹ 175 bar
Max. pressure peak² 225 bar

Formerly Danfoss OMP X 100 Hydraulic Motor

*Please note, the images displayed may not be the true representation of the product. For the exact images, please contact Neilson Hydraulics Technical Team on 01709 821 002.
