Product Description:
25mm Cylindrical Shaft
Geometric displacement 155.7 cm³
Max. speed continuous. 385 min-1
Max. speed intermittent.¹ 480 rpm
Max. torque continuous. 300 Nm
Max. torque intermittent.¹ 370 Nm
Max. torque peak² 430 Nm
Max. output continuous. 10 kW
Max. output intermittent.¹ 12.0 kW
Max. pressure continuous.140 bar
Max. pressure intermittent.¹ 175 bar
Max. pressure peak² 225 bar

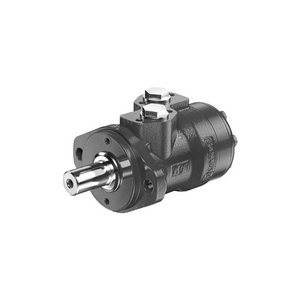

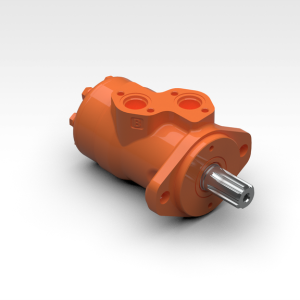

Formerly Danfoss OMP X 160 Hydraulic Motor
*Please note, the images displayed may not be the true representation of the product. For the exact images, please contact Neilson Hydraulics Technical Team on 01709 821 002.
