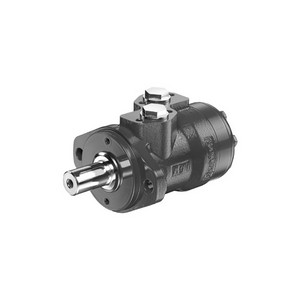

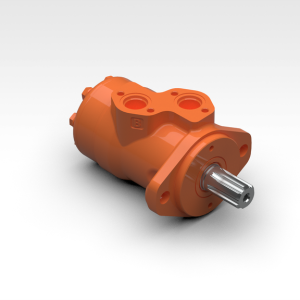

White Drive OMP X 200 Hydraulic Motor

Product Description:
25mm Cylindrical Shaft
Geometric displacement 194.6 cm³
Max. speed continuous. 310 min-1
Max. speed intermittent.¹ 385 rpm
Max. torque continuous. 300 Nm
Max. torque intermittent.¹ 380 Nm
Max. torque peak² 540 Nm
Max. output continuous. 8.0 kW
Max. output intermittent.¹ 11.0 kW
Max. pressure continuous. 115 bar
Max. pressure intermittent.¹ 150 bar
Max. pressure peak² 225 bar

Formerly Danfoss OMP X 200 Hydraulic Motor
