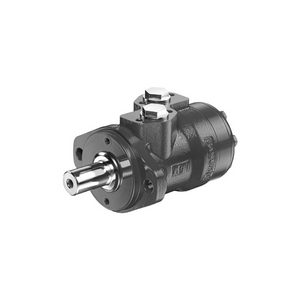

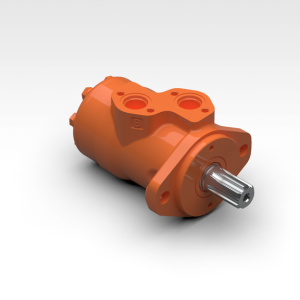

White Drive OMP X 250 Hydraulic Motor

Product Description:
25mm Cylindrical Shaft
Geometric displacement 242.3 cm³
Max. speed continuous. 250 min-1
Max. speed intermittent.¹ 310 rpm
Max. torque continuous. 300 Nm
Max. torque intermittent.¹ 410 Nm
Max. torque peak² 550 Nm
Max. output continuous. 6.0 kW
Max. output intermittent.¹ 9.0 kW
Max. pressure continuous. 90 bar
Max. pressure intermittent.¹ 125 bar
Max. pressure peak² 180 bar

Formerly Danfoss OMP X 250 Hydraulic Motor

*Please note, the images displayed may not be the true representation of the product. For the exact images, please contact Neilson Hydraulics Technical Team on 01709 821 002.
