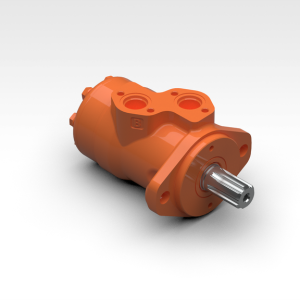

White Drive OMP X 32 Hydraulic Motor

Product Description:
25mm Cylindrical Shaft
Geometric displacement 32 cm³
Max. speed continuous. 1560 min-1
Max. speed intermittent.¹ 1720 rpm
Max. torque continuous. 43 Nm
Max. torque intermittent.¹ 61 Nm
Max. torque peak² 86 Nm
Max. output continuous. 5.8 kW
Max. output intermittent.¹ 7.8 kW
Max. pressure continuous. 100 bar
Max. pressure intermittent.¹ 140 bar
Max. pressure peak² 225 bar

Formerly Danfoss OMP X 32 Hydraulic Motor

*Please note, the images displayed may not be the true representation of the product. For the exact images, please contact Neilson Hydraulics Technical Team on 01709 821 002.
