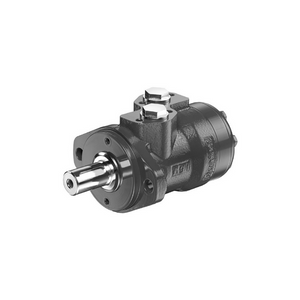

White Drive OMP X 40 Hydraulic Motor

Product Description:
25mm Cylindrical Shaft
Geometric displacement 40 cm³
Max. speed continuous. 1500 min-1
Max. speed intermittent.¹ 1750 rpm
Max. torque continuous. 52 Nm
Max. torque intermittent.¹ 74 Nm
Max. torque peak² 107 Nm
Max. output continuous. 7.0 kW
Max. output intermittent.¹ 10.6 kW
Max. pressure continuous. 100 bar
Max. pressure intermittent.¹ 140 bar
Max. pressure peak² 225 bar

Formerly Danfoss OMP X 40 Hydraulic Motor

*Please note, the images displayed may not be the true representation of the product. For the exact images, please contact Neilson Hydraulics Technical Team on 01709 821 002.
