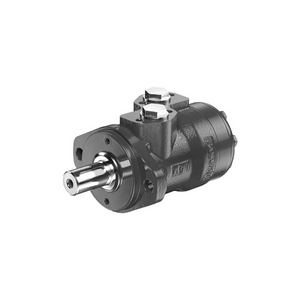

White Drive OMP X 400 Hydraulic Motor

Product Description:
25mm Cylindrical Shaft
Geometric displacement 389.2 cm³
Max. speed continuous. 155 min-1
Max. speed intermittent.¹ 190 rpm
Max. torque continuous. 300 Nm
Max. torque intermittent.¹ 420 Nm
Max. torque peak² 600 Nm
Max. output continuous. 4.0 kW
Max. output intermittent.¹ 6.0 kW
Max. pressure continuous. 60 bar
Max. pressure intermittent.¹ 80 bar
Max. pressure peak² 130 bar

Formerly Danfoss OMP X 400 Hydraulic Motor
