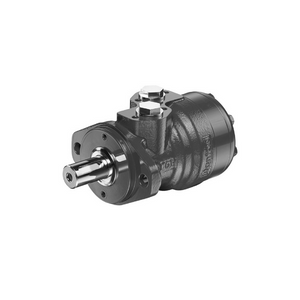

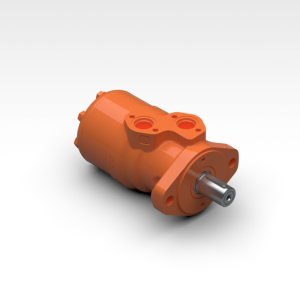

White Drive OMR X 160 Hydraulic Motor

Product Description:
25mm Cylindrical Shaft
Geometric displacement 159.6 cm³
Max. speed continuous. 375 min-1
Max. speed intermittent.¹ 470 rpm
Max. torque continuous. 300 Nm
Max. torque intermittent.¹ 390 Nm
Max. torque peak² 460 Nm
Max. output continuous. 10.0 kW
Max. output intermittent.¹ 12.5 kW
Max. pressure continuous. 130 bar
Max. pressure intermittent.¹ 175 bar
Max. pressure peak² 225 bar

Formerly Danfoss OMR X 160 Hydraulic Motor
