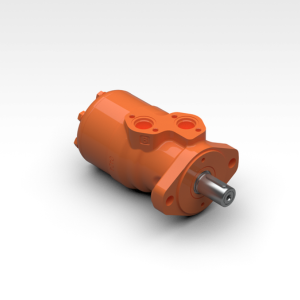

White Drive OMR X 200 Hydraulic Motor

Product Description:
25mm Cylindrical Shaft
Geometric displacement 199.8 cm³
Max. speed continuous. 300 min-1
Max. speed intermittent.¹ 375 rpm
Max. torque continuous. 300 Nm
Max. torque intermittent.¹ 390 Nm
Max. torque peak² 560 Nm
Max. output continuous. 8.0 kW
Max. output intermittent.¹ 10.0 kW
Max. pressure continuous. 110 bar
Max. pressure intermittent.¹ 140 bar
Max. pressure peak² 225 bar

Formerly Danfoss OMR X 200 Hydraulic Motor

*Please note, the images displayed may not be the true representation of the product. For the exact images, please contact Neilson Hydraulics Technical Team on 01709 821 002.
