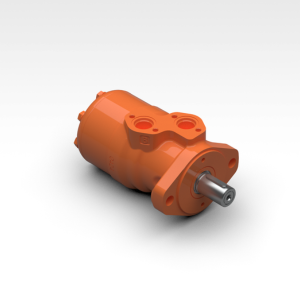

White Drive OMR X 315 Hydraulic Motor

Product Description:
25mm Cylindrical Shaft
Geometric displacement 315.7 cm³
Max. speed continuous. 190 min-1
Max. speed intermittent.¹ 240 rpm
Max. torque continuous. 300 Nm
Max. torque intermittent.¹ 420 Nm
Max. torque peak² 610 Nm
Max. output continuous. 5.0 kW
Max. output intermittent.¹ 6.5 kW
Max. pressure continuous. 70 bar
Max. pressure intermittent.¹ 100 bar
Max. pressure peak² 150 bar

Formerly Danfoss OMR X 315 Hydraulic Motor

*Please note, the images displayed may not be the true representation of the product. For the exact images, please contact Neilson Hydraulics Technical Team on 01709 821 002.
