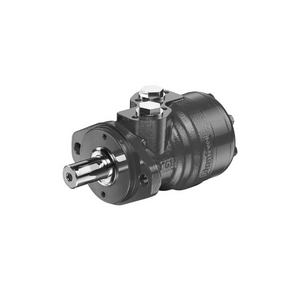

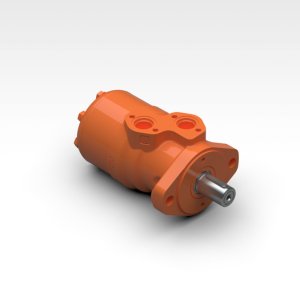

White Drive OMR X 50 Hydraulic Motor

Product Description:
25mm Cylindrical Shaft
Geometric displacement 51.6 cm³
Max. speed continuous. 775 min-1
Max. speed intermittent.¹ 970 rpm
Max. torque continuous. 100 Nm
Max. torque intermittent.¹ 130 Nm
Max. torque peak² 170 Nm
Max. output continuous. 7.0 kW
Max. output intermittent.¹ 8.5 kW
Max. pressure continuous. 140 bar
Max. pressure intermittent.¹ 175 bar
Max. pressure peak² 225 bar

Formerly Danfoss OMR X 50 Hydraulic Motor

*Please note, the images displayed may not be the true representation of the product. For the exact images, please contact Neilson Hydraulics Technical Team on 01709 821 002.
