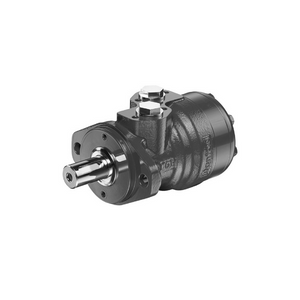

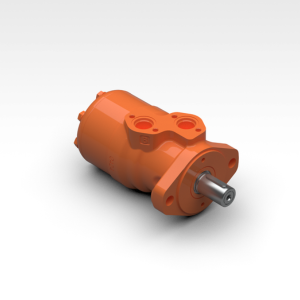

White Drive OMR X 80 Hydraulic Motor

Product Description:
25mm Cylindrical Shaft
Geometric displacement 80.3 cm³
Max. speed continuous. 750 min-1
Max. speed intermittent.¹ 940 rpm
Max. torque continuous. 195 Nm
Max. torque intermittent.¹ 220 Nm
Max. torque peak² 270 Nm
Max. output continuous. 12.5 kW
Max. output intermittent.¹ 15.0 kW
Max. pressure continuous. 175 bar
Max. pressure intermittent.¹ 200 bar
Max. pressure peak² 225 bar

Formerly Danfoss OMR X 80 Hydraulic Motor

*Please note, the images displayed may not be the true representation of the product. For the exact images, please contact Neilson Hydraulics Technical Team on 01709 821 002.
