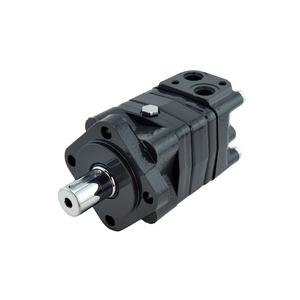

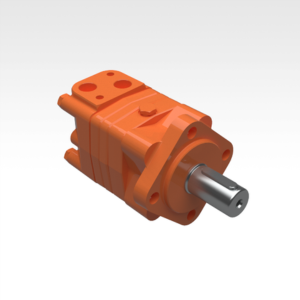

White Drive OMS 100 Hydraulic Motor

Product Description:
32mm Cylindrical Shaft
Geometric displacement 100.0 cm³
Max. speed continuous. 750 min-1
Max. speed intermittent.¹ 900 rpm
Max. torque continuous. 305 Nm
Max. torque intermittent.¹ 390 Nm
Max. output continuous. 18.0 kW
Max. output intermittent.¹ 22.5 kW
Max. pressure continuous. 210 bar
Max. pressure intermittent.¹ 275 bar
Max. pressure peak² 295 bar

Formerly Danfoss OMS 100 Hydraulic Motor

*Please note, the images displayed may not be the true representation of the product. For the exact images, please contact Neilson Hydraulics Technical Team on 01709 821 002.
