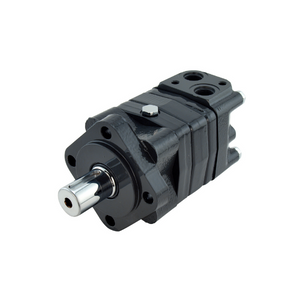

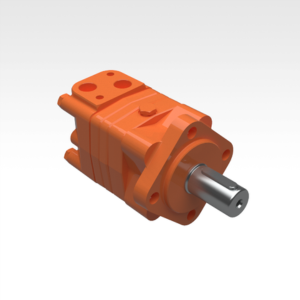

White Drive OMS 250 Hydraulic Motor

Product Description:
32mm Cylindrical Shaft
Geometric displacement 250 cm³
Max. speed continuous. 300 min-1
Max. speed intermittent.¹ 360 rpm
Max. torque continuous. 720 Nm
Max. torque intermittent.¹ 870 Nm
Max. output continuous. 14.5 kW
Max. output intermittent.¹ 18.0 kW
Max. pressure continuous. 200 bar
Max. pressure intermittent.¹ 250 bar
Max. pressure peak² 270 bar

Formerly Danfoss OMS 250 Hydraulic Motor

*Please note, the images displayed may not be the true representation of the product. For the exact images, please contact Neilson Hydraulics Technical Team on 01709 821 002.
